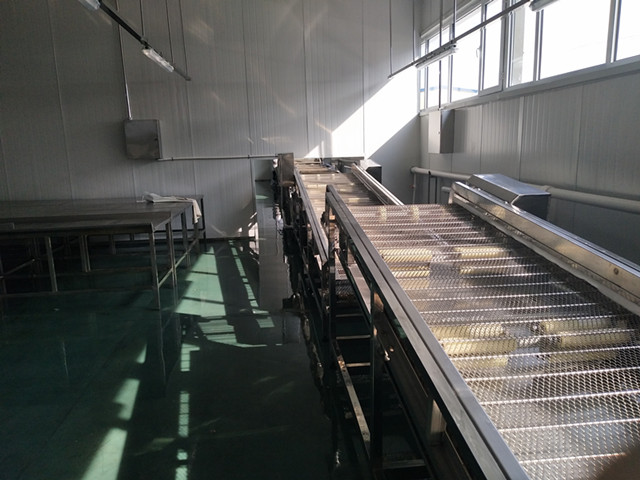

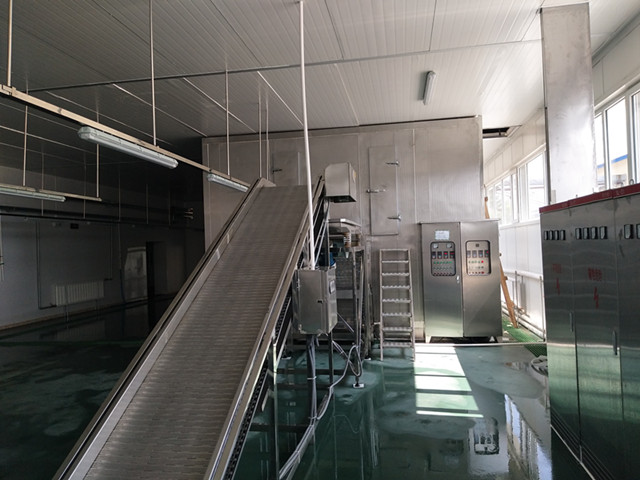

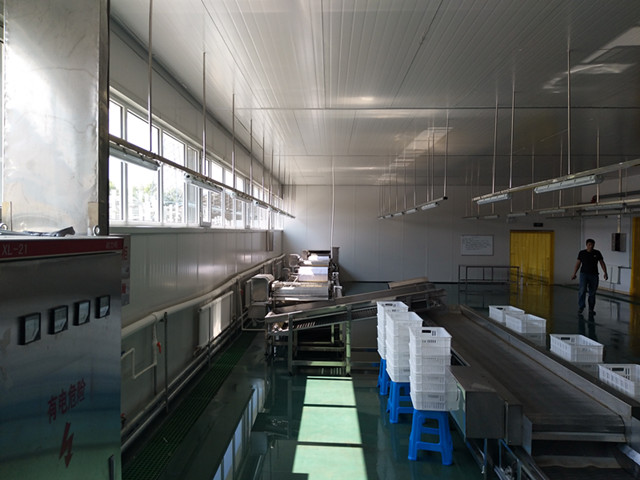

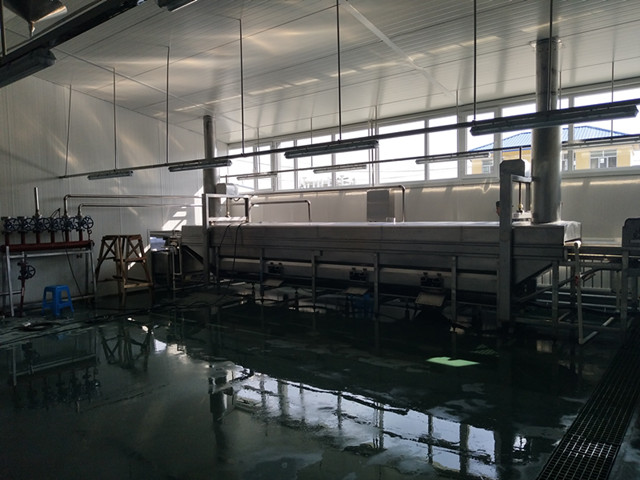

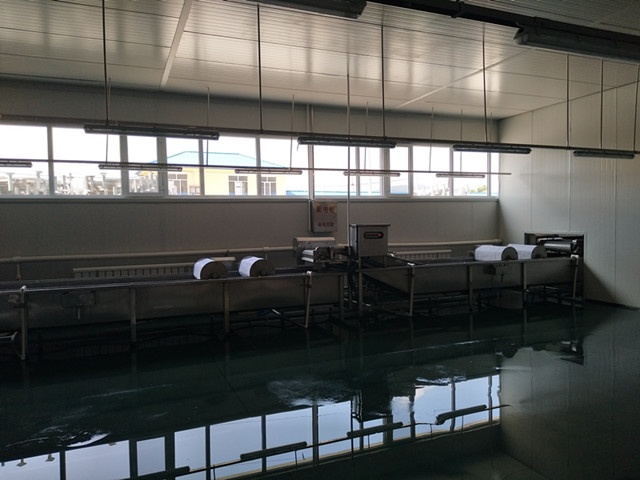

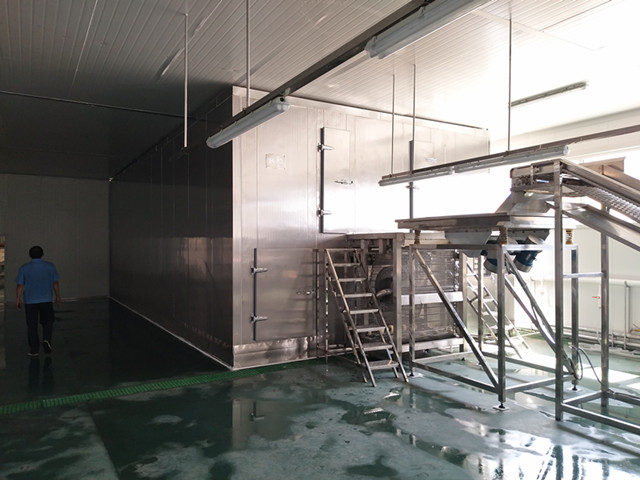

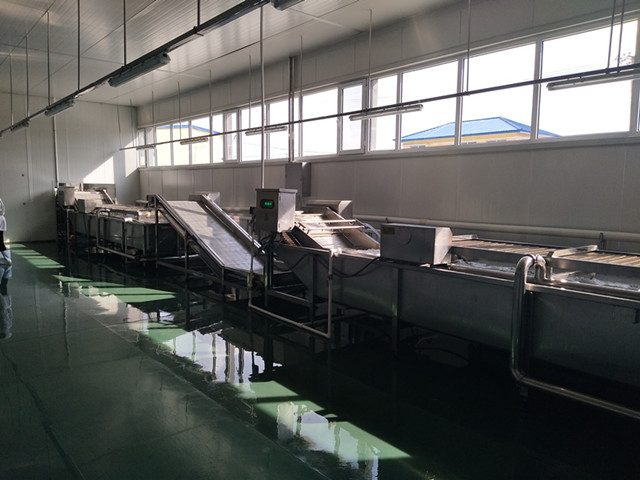

Quick-frozen Processing Line of Wild Vegetables
2019年6月15日

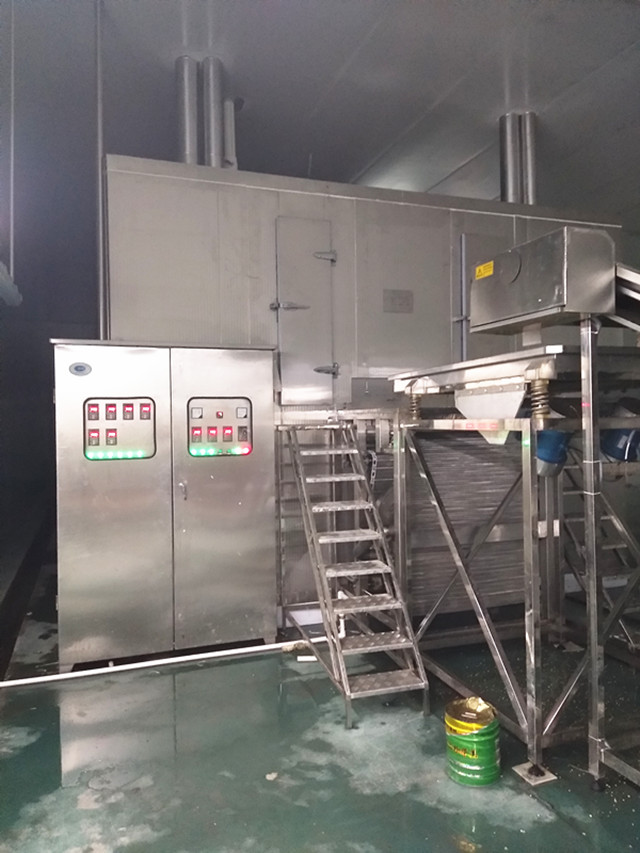

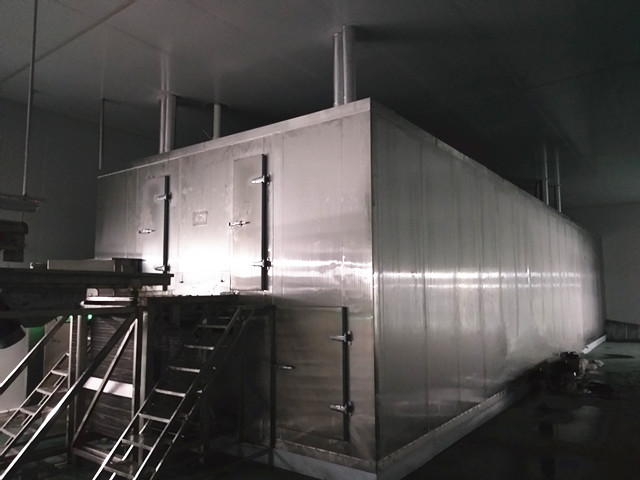

The fan motor is designed in vitro to facilitate maintenance and save 30% of running energy. The internal space is optimized for easy control and cleaning, and there is no sanitary blind area.Double impeller, double suction and lower design, high wind pressure, can realize all frozen products in full suspension during the freezing process, the yield of frozen products is 98% - 100%.Intelligent configuration of full frequency conversion, adjustable air volume, wide application range, fast freezing speed and good quality.
Model
Freezing capacity（kg/h）
Freezing time（min）
Cold consumption(kw)
Installed power
(kw)
Shape size
L×W×H（mm）
LSD(Ⅱ)-Ⅳ-1500Z
1500
Frequency conversion adjustable
240
68
12000×5000×3800
LSD(Ⅱ)-Ⅳ-2000Z
2000
Frequency conversion adjustable
320
83
14000×5000×3800
LSD(Ⅱ)-Ⅳ-2500Z
2500
Frequency conversion adjustable
400
98
16000×5000×3800
LSD(Ⅱ)-Ⅳ-3000Z
3000
Frequency conversion adjustable
480
113
18000×5000×3800
LSD(Ⅱ)-Ⅳ-3500Z
3500
Frequency conversion adjustable
550
122
19000×5000×3800
LSD(Ⅱ)-Ⅳ-4000Z
4000
Frequency conversion adjustable
620
130
20000×5000×3800
LSD(Ⅱ)-Ⅳ-4500Z
4500
Frequency conversion adjustable
690
138
21000×5000×3800
LSD(Ⅱ)-Ⅳ-5000Z
5000
Frequency conversion adjustable
750
145
22000×5000×3800
In green beans:
Feed temperature:+15°C below
Discharge temperature:-18°C below
Freezing time can be adjusted according to different products.
.
