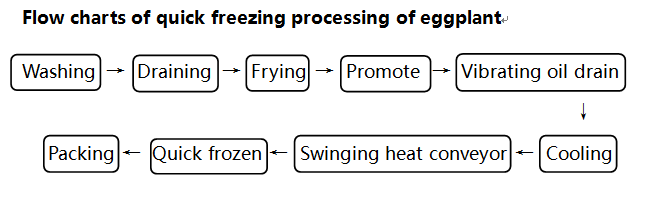

Quick-Frozen Processing Line of Eggplant Fried

2019年6月17日

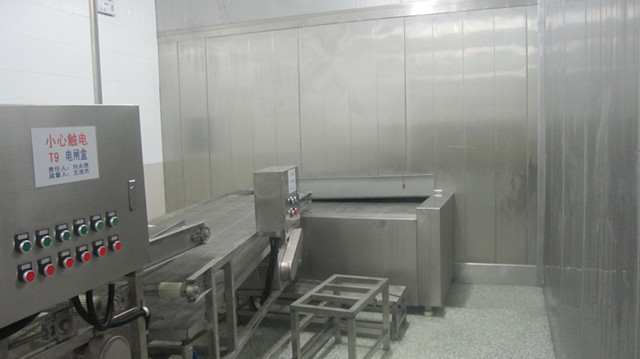

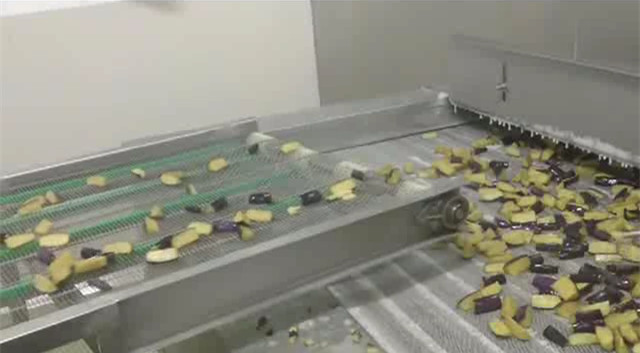

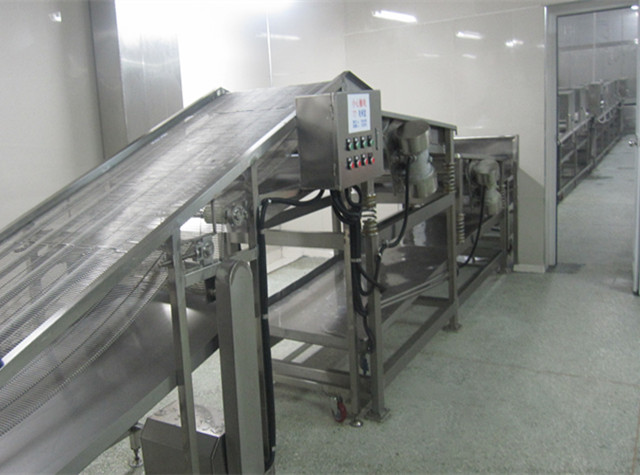

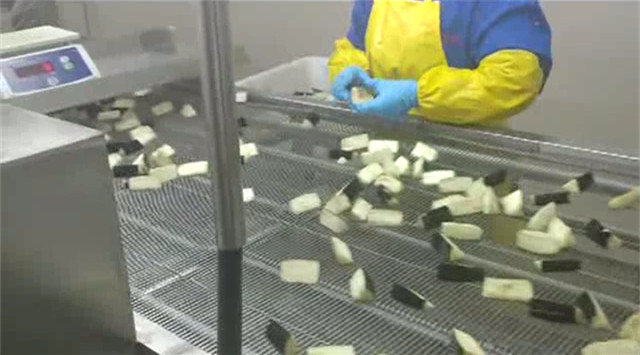

Eggplant washing and draining machine

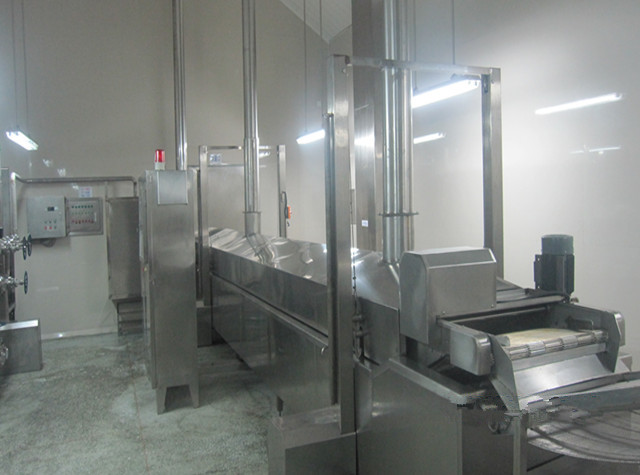

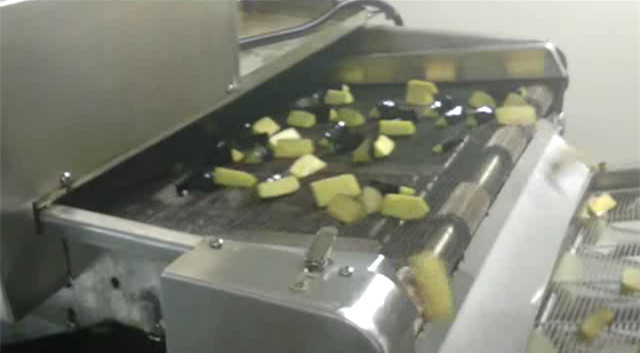

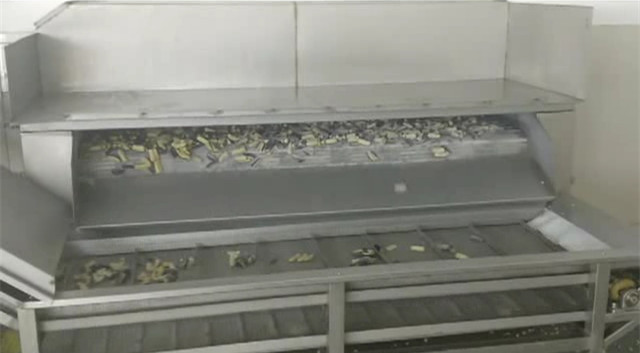

Eggplant fryer

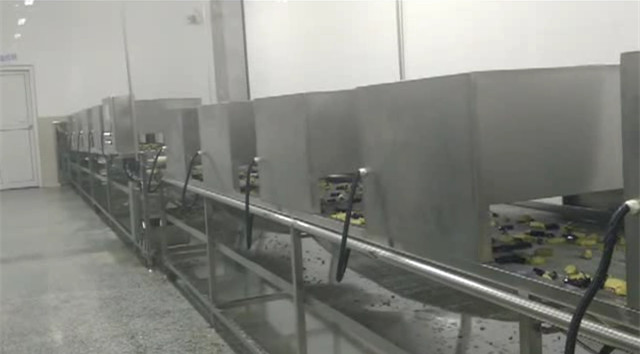

Eggplant cooling machine

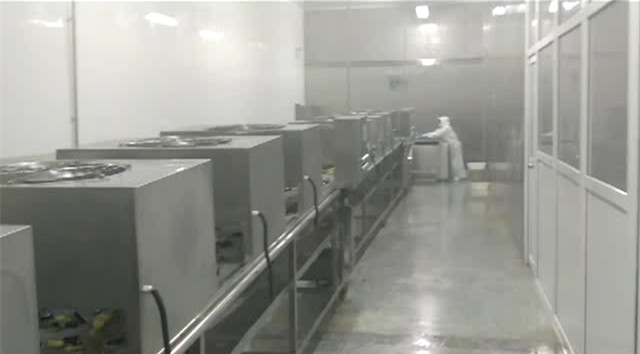

Eggplant quick freezer

Structural characteristics:

(1) The advanced oil-water integrated technology overcomes the defects of the conventional fryer,

automatically filters and discharges the dregs, can keep the oil fried clean, does not need to change the oil

frequently, so that the quality of the fried products is consistent.

(2) The whole process oil temperature is automatically controlled, and the temperature can be set freely

from 0-230 ℃, which is suitable for frying all kinds of food with various technological requirements

(3) Efficient heating system can avoid energy waste and save a lot of energy expenditure.

(4) The fryer works continuously ,which improves the unit work efficiency and effectively reduces the unit

cost

Technical parameter:

Installed power: about 220kw

Oil capacity:200L

Conveying speed: frequency conversion adjustable

Coal consumption: Electric heating

Temperature control range:230℃

Yield:900kg/h

SWD series single quick-freezing machine adopts stainless steel conveyor belt and guide style column

with wind criculation test .It introduces advancedheat wave blowing freezing technology from obroad,

which has the characteristics of heat exchange effect and quick freezing, it's expecially suitable for freezing

of aquatic products ,fruits and vegetables,pasta,cut meat and seed-processed foods.

Technical parameter:

Model	Freezing capacity（kg/h）	Freezing time（min）	Cold consumption(kw)	Installed power (kw)	Shape size L×W×H（mm）
SWD-250	250	Frequency conversion adjustable	45	6	8000×2400×2800
SWD-500	500	Frequency conversion adjustable	85	11	13000×2400×2800
SWD-800	800	Frequency conversion adjustable	130	16	15000×3000×2800
SWD-1000	1000	Frequency conversion adjustable	165	20	19000×3000×2800
SWD-1500	1500	Frequency conversion adjustable	235	29	22000×3500×2800

Using frozen dumpings:

Feed temperture:<+10°C

Discharge temperture:-18°C

Freezing tenperture:-38°C

Feeding density:10kg/m²

Freezing time can be adjusted according to different products.
