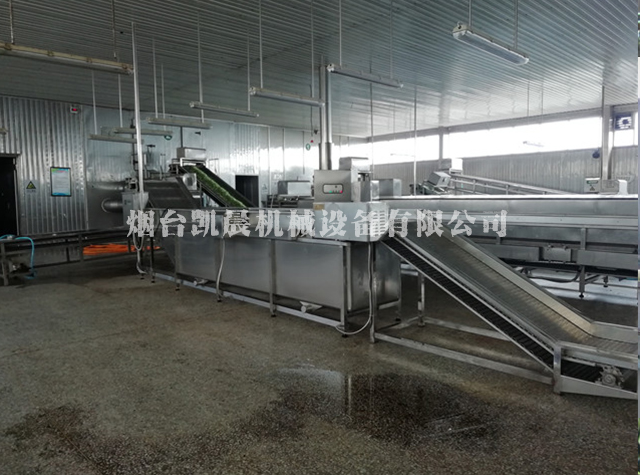

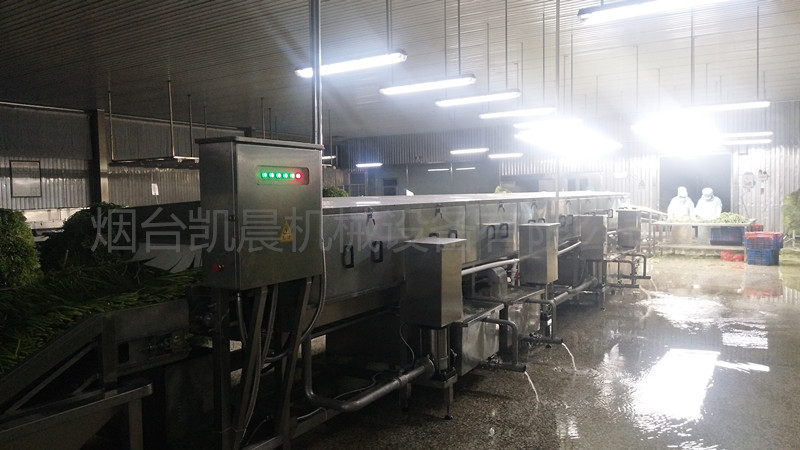

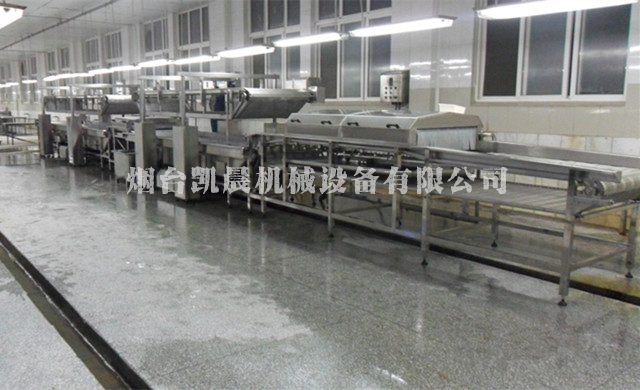

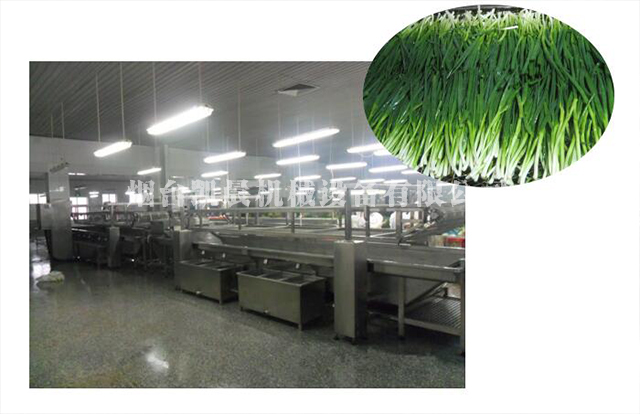

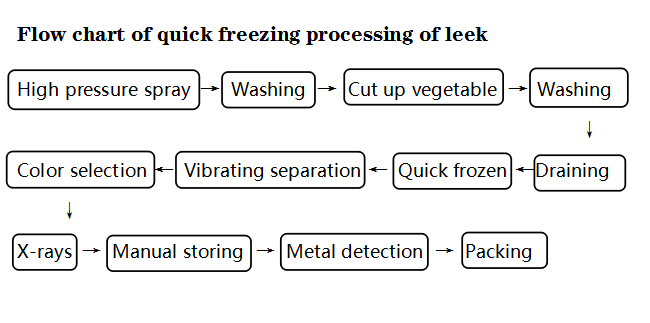

Quick-Frozen Processing Line of Leek
2019Äê6ÔÂ17ÈÕ

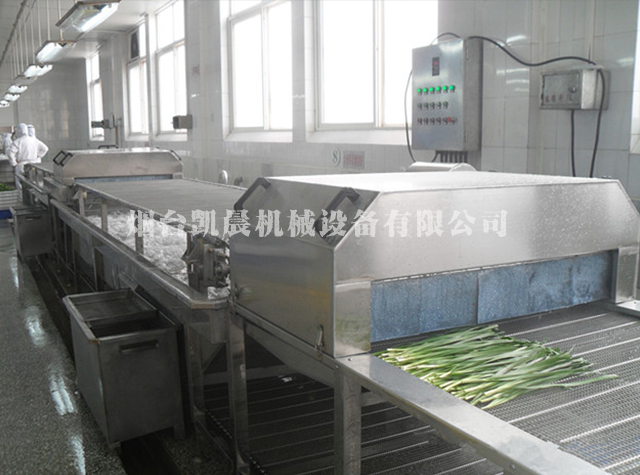

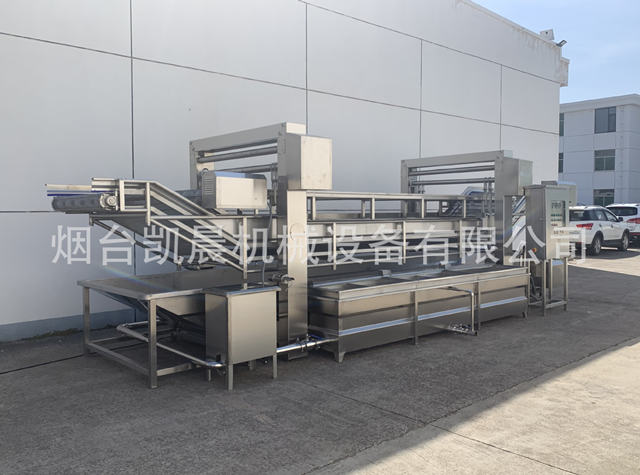

Leek high pressure machine

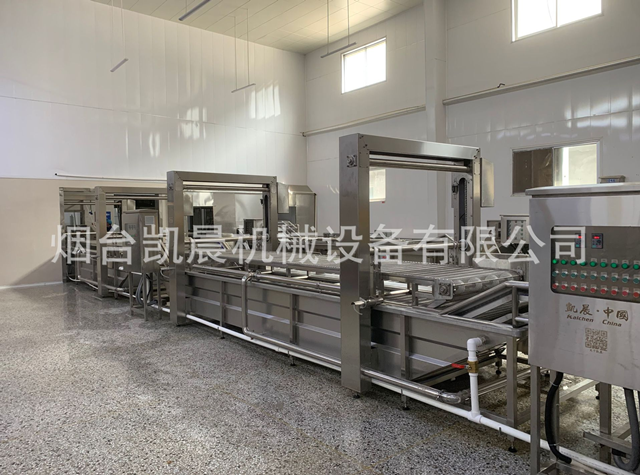

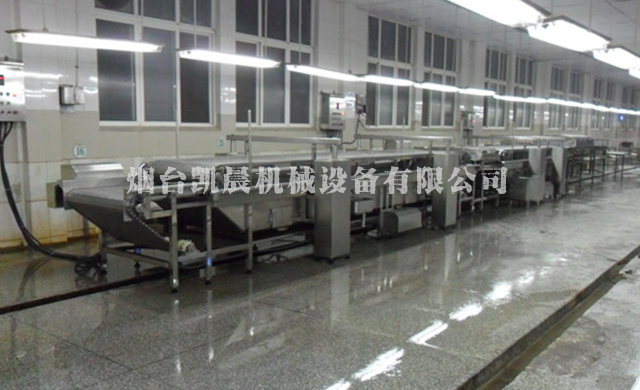

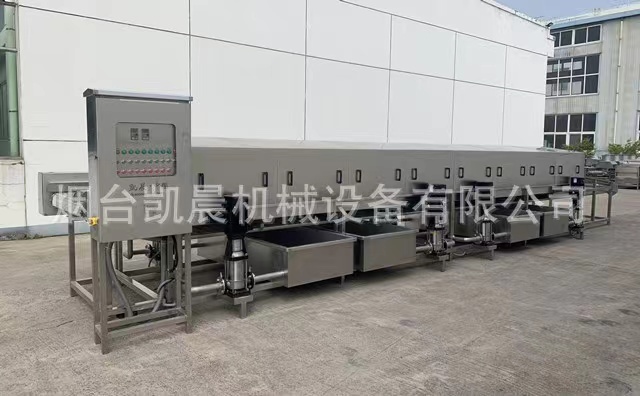

Leek sterilization washing machine

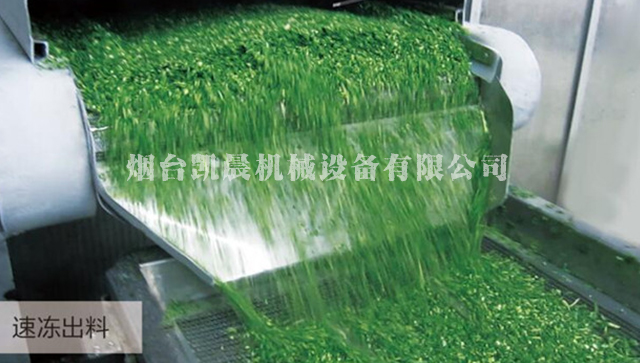

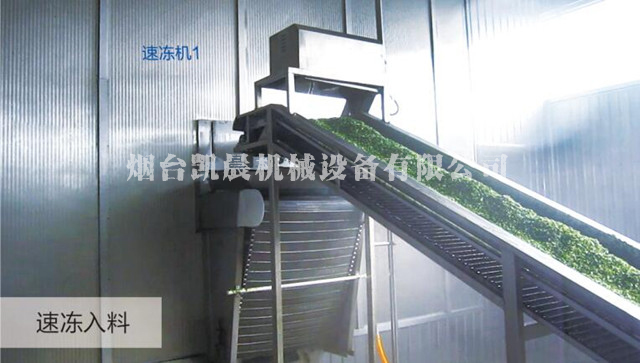

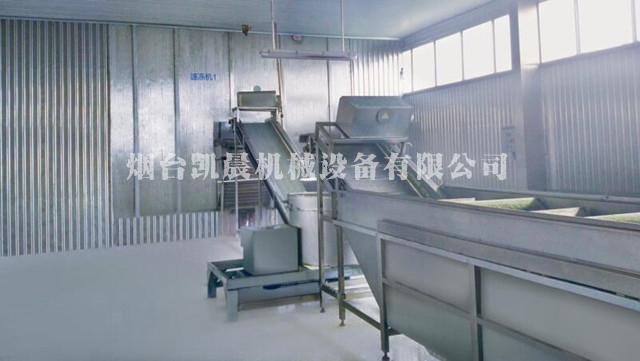

Leek quick freezer

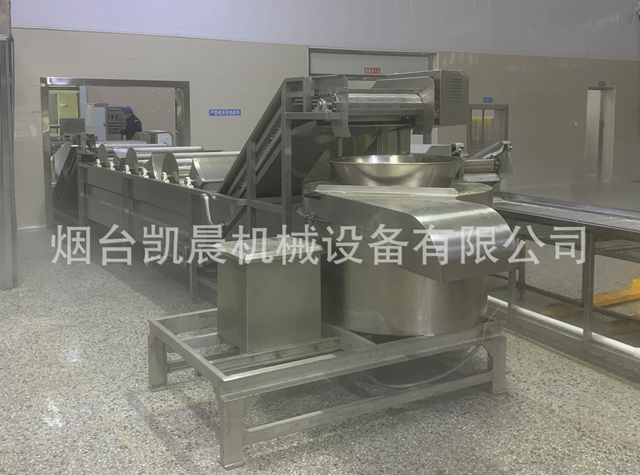

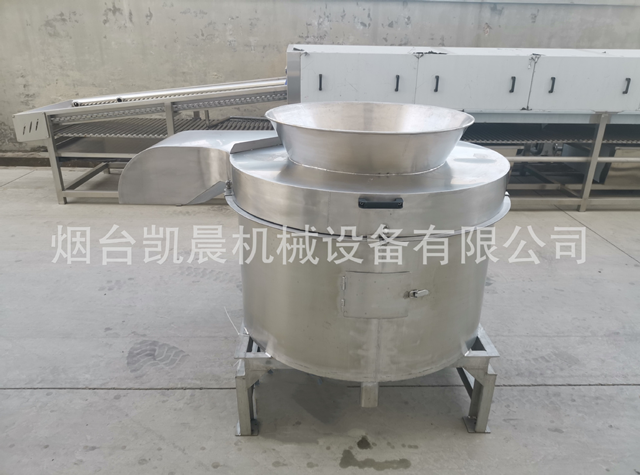

LT type-I continuous centrifugal dehydrator
LT type II continuous centrifugal dehydrator

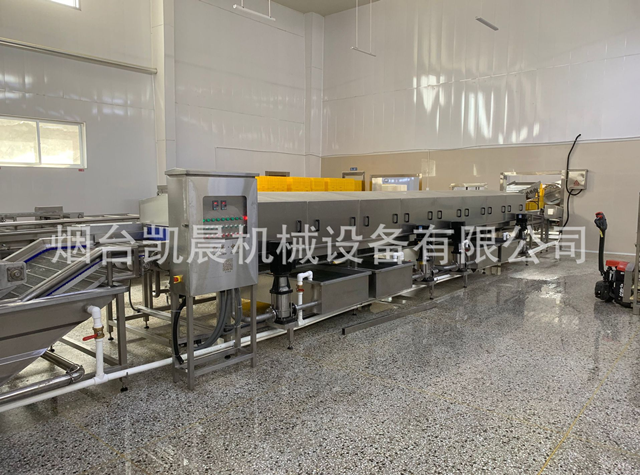

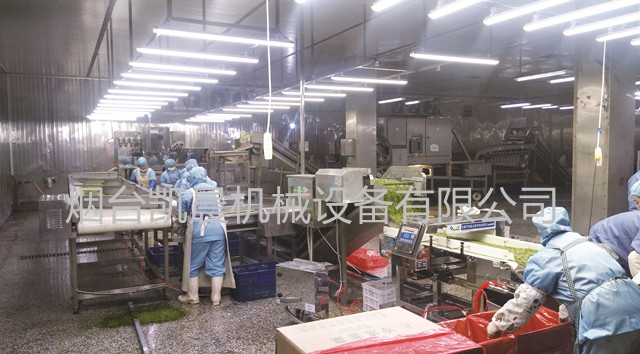

The quick frozen production line of Leek and chive is a new generation of cleaning and quickfrozen processing
line developed by our company`s Japanese technology
processing of leek, chive, shallots, white onion, strawberry, raspberry, blackcurrant and diced fruits and
vegetables.
LSD(II)-IV series fluidized bed unit freezer is a new generation of freezer introduced by our company.Design features of the machine:♦The fan motor is designed outside the body, which is convenient for maintenance, saving 30% of electricenergy. The internal space is optimized for easy control and cleaning, and there is no sanitary blind area.
♦Double impeller, double suction and lower design, high wind pressure, can realize all frozen products infull suspension during the freezing process, the yield of frozen products is 98% - 100%.♦Intelligent configuration of full frequency conversion, adjustable air volume, wide application range, fastfreezing speed and good quality.
This machine is suitable for quick freezing of green beans ,oil beans,soybean,Dutch deans,green
peppers and other fruits and vegetables such as ding,rhizome,lump and flake.
Model
Freezing capacity£¨kg/h£©
Freezing time£¨min£©
Cold consumption(kw)
Installed power
(kw)
Shape size
L×W×H£¨mm£©
LSD(¢ò)-IV-1500Z
1500
Frequency conversion adjustable
240
68
12000×5000×3800
LSD(¢ò)-IV-2000Z
2000
Frequency conversion adjustable
320
83
14000×5000×3800
LSD(¢ò)-IV-2500Z
2500
Frequency conversion adjustable
400
98
16000×5000×3800
LSD(¢ò)-IV-3000Z
3000
Frequency conversion adjustable
480
113
18000×5000×3800
LSD(¢ò)-IV-3500Z
3500
Frequency conversion adjustable
550
122
19000×5000×3800
LSD(¢ò)-IV-4000Z
4000
Frequency conversion adjustable
620
130
20000×5000×3800
LSD(¢ò)-IV-4500Z
4500
Frequency conversion adjustable
690
138
21000×5000×3800
LSD(¢ò)-IV-5000Z
5000
Frequency conversion adjustable
750
145
22000×5000×3800
In green beans:
Feed temperture:+15°C below
Discharge temperture:-18°C below
Freezing time can be adjusted according to different products.
