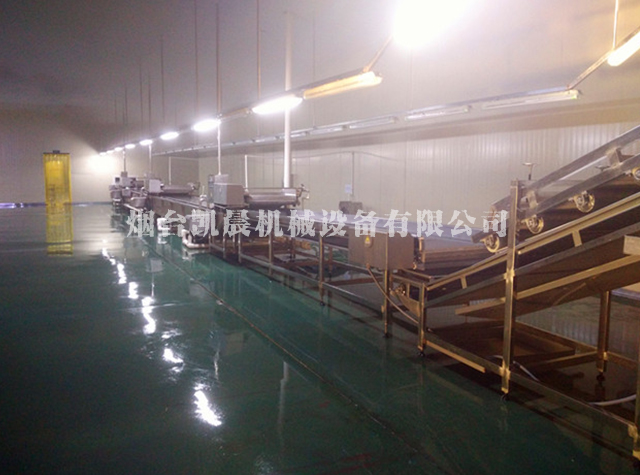

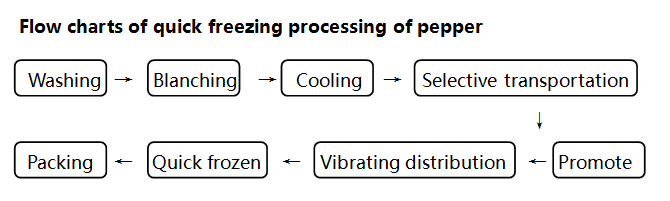

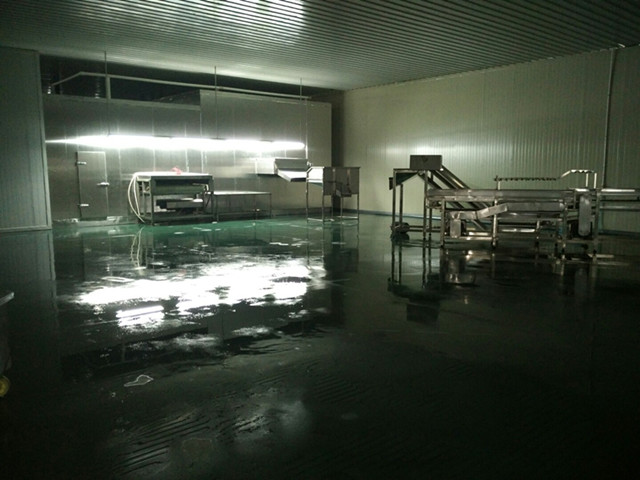

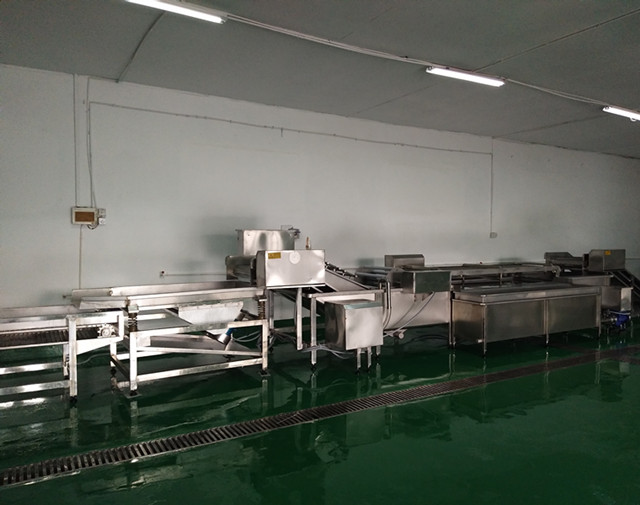

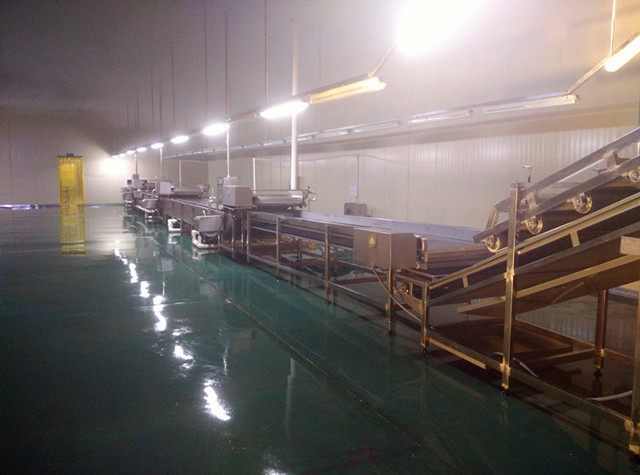

Quick-frozen Processing Line of pepper

2019年6月18日

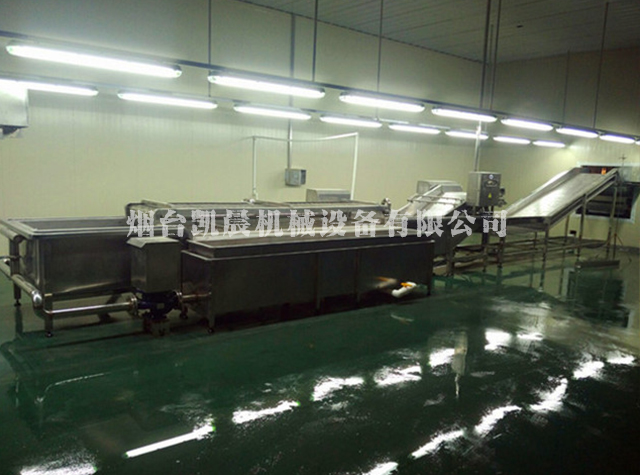

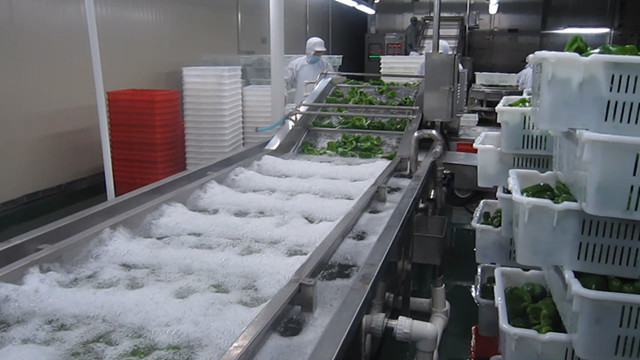

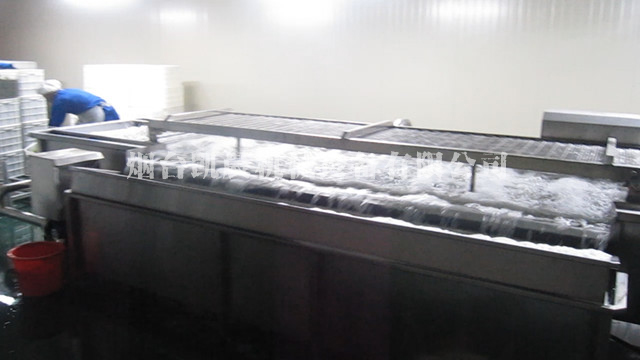

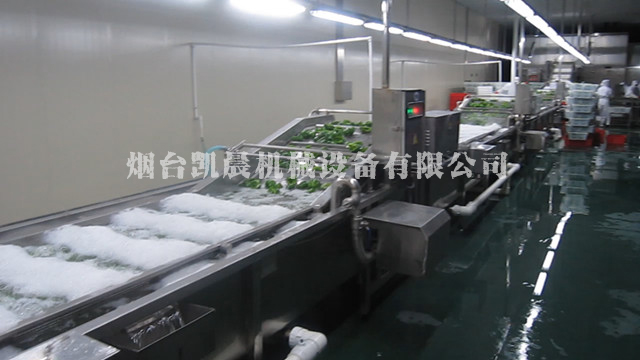

Pepper washing machine

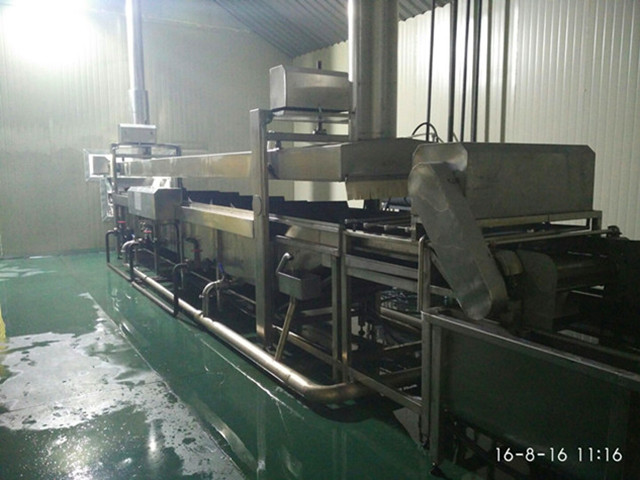

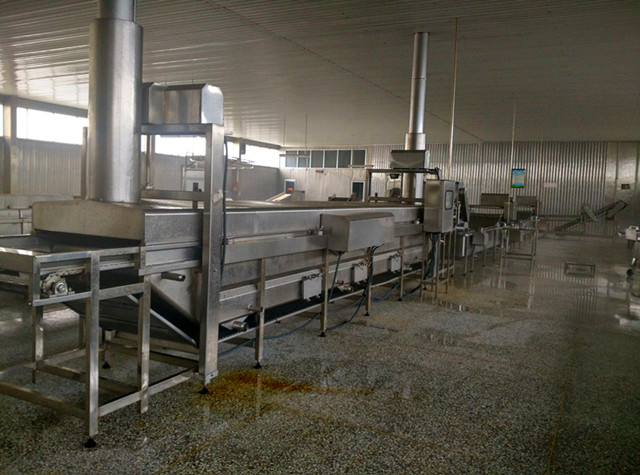

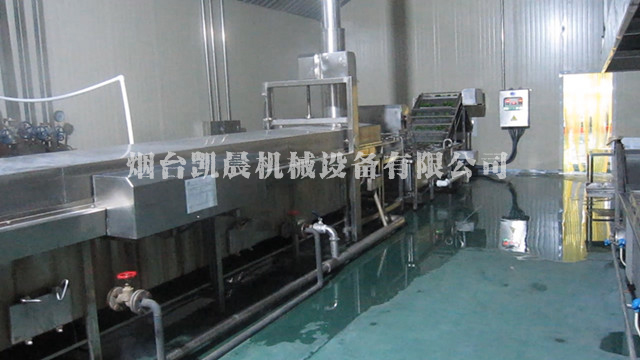

Pepper blanching machine

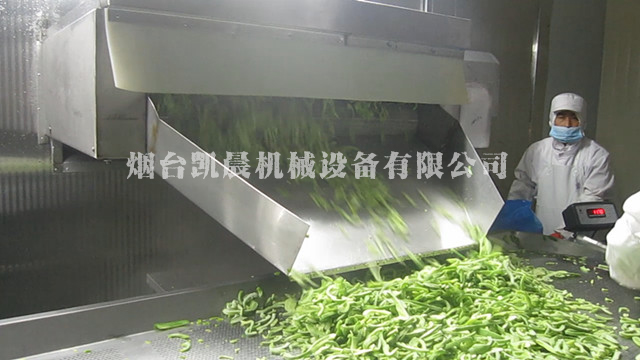

Pepper cooling machine

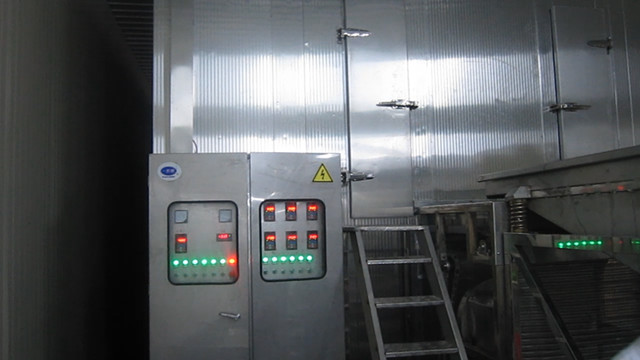

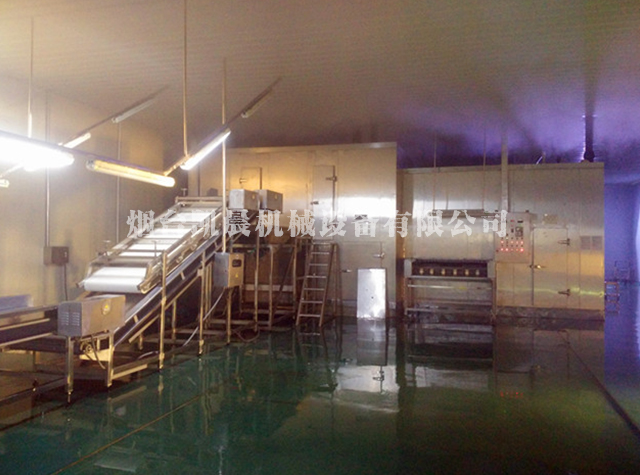

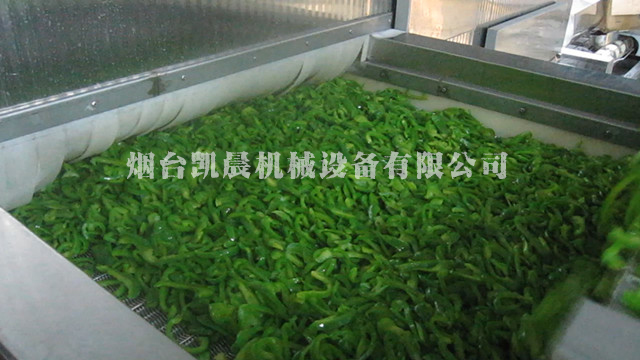

Pepper quick freezer

LSD(II)-IV series fluidized bed unit freezer is a new generation of freezer introduced by our company.

Design features of the machine:

♦The fan motor is designed outside the body, which is convenient for maintenance, saving 30% of

electric energy. The internal space is optimized for easy control and cleaning, and there is no sanitary

blind area.

♦Double impeller, double suction and lower design, high wind pressure, can realize all frozen products

in full suspension during the freezing process, the yield of frozen products is 98% - 100%.

♦Intelligent configuration of full frequency conversion, adjustable air volume, wide application range,

fast freezing speed and good quality.

This machine is suitable for quick freezing of green beans ,oil beans,soybean,Dutch deans,green

peppers and other fruits and vegetables such as ding,rhizome,lump and flake.

Model	Freezing capacity（kg/h）	Freezing time（min）	Cold consumption(kw)	Installed power (kw)	Shape size L×W×H（mm）
LSD(Ⅱ)-IV-1500Z	1500	Frequency conversion adjustable	240	68	12000×5000×3800
LSD(Ⅱ)-IV-2000Z	2000	Frequency conversion adjustable	320	83	14000×5000×3800
LSD(Ⅱ)-IV-2500Z	2500	Frequency conversion adjustable	400	98	16000×5000×3800
LSD(Ⅱ)-IV-3000Z	3000	Frequency conversion adjustable	480	113	18000×5000×3800
LSD(Ⅱ)-IV-3500Z	3500	Frequency conversion adjustable	550	122	19000×5000×3800
LSD(Ⅱ)-IV-4000Z	4000	Frequency conversion adjustable	620	130	20000×5000×3800
LSD(Ⅱ)-IV-4500Z	4500	Frequency conversion adjustable	690	138	21000×5000×3800
LSD(Ⅱ)-IV-5000Z	5000	Frequency conversion adjustable	750	145	22000×5000×3800

In green beans:

Feed temperature:+15°C below

Discharge temperature:-18°C below

Freezing time can be adjusted according to different products.
