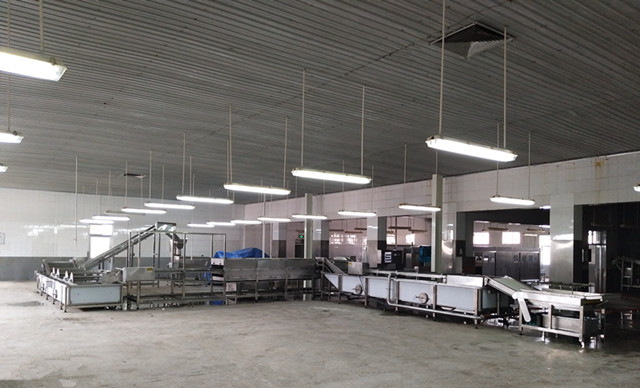

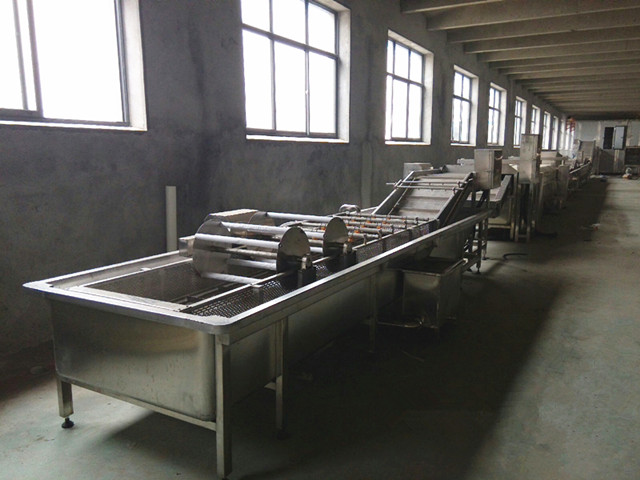

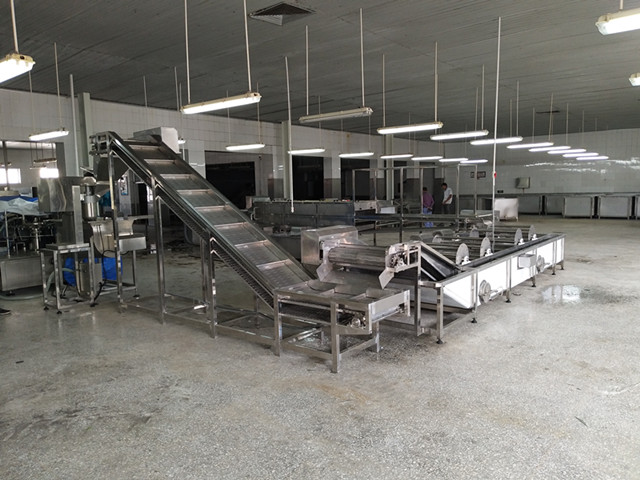

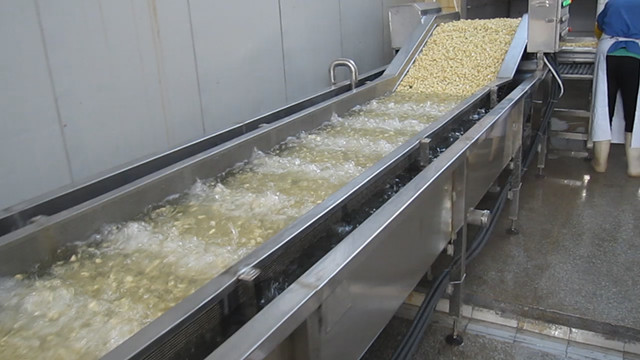

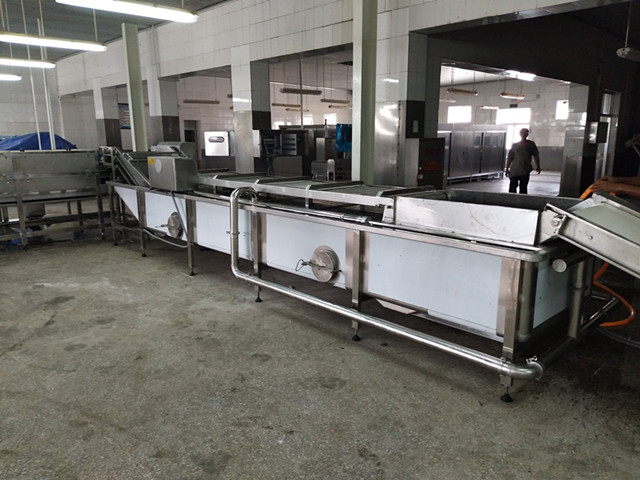

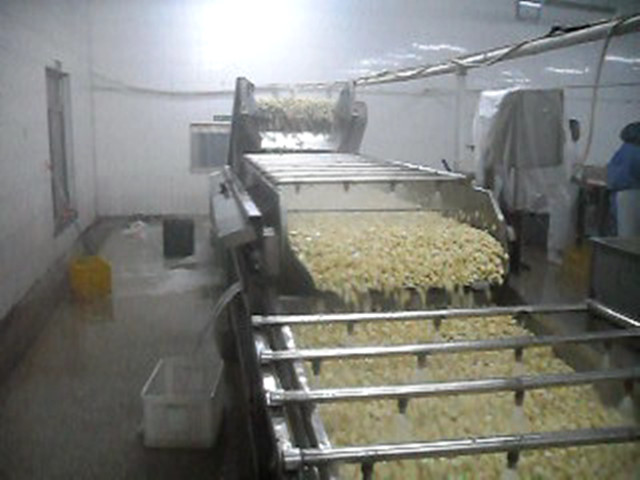

Quick-frozen Processing Line of Garlic
2019年6月18日

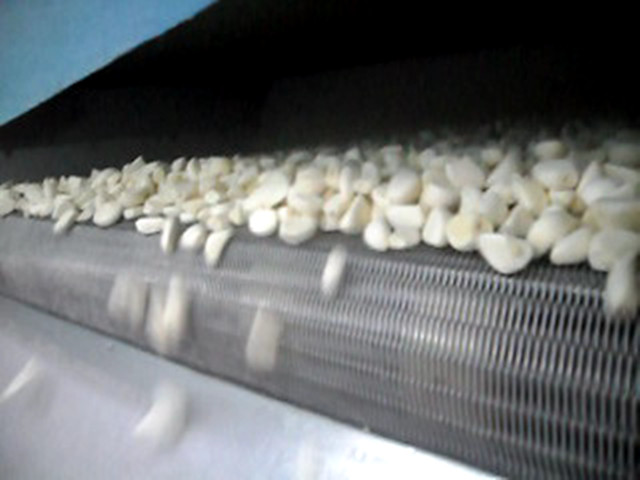

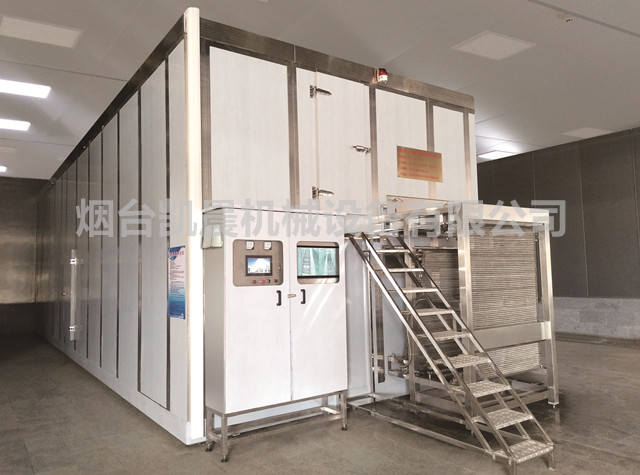

Garlic quick freezer

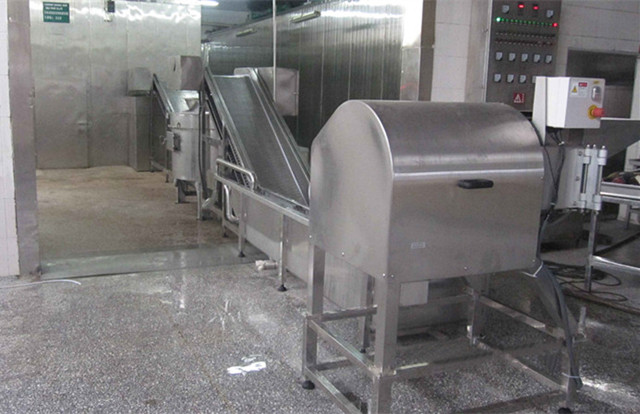

Garlic dicing machine
LSD(II) - Ⅲ Series fluidized bed single quick-freezer is designed with upper fan and upper suction
fluidized structure. It adopts stainless steel conveyor belt,centrifugal stainless steel fan, mechanical
vibration device and evaporator under design. It has the characteristics of fluidized freezing function, long
effective working time of evaporator and wide application range. It is suitable for quick freezing products of
ding, beans, leafy vegetables, rhizomes, onions and garlic .
Technical parameter:
Model
Freezing capacity（kg/h）
Freezing time（min）
Cold consumption(kw)
Installed power
(kw)
Shape size
L×W×H（mm）
LSD(Ⅱ)-Ⅲ-1500Z
1500
Frequency conversion adjustable
240
60
12000×4000×3800
LSD(Ⅱ)-Ⅲ-2000Z
2000
Frequency conversion adjustable
320
68
14000×4000×3800
LSD(Ⅱ)-Ⅲ-2500Z
2500
Frequency conversion adjustable
400
85
16000×4000×3800
LSD(Ⅱ)-Ⅲ-3000Z
3000
Frequency conversion adjustable
480
100
18000×4000×3800
LSD(Ⅱ)-Ⅲ-3500Z
3500
Frequency conversion adjustable
550
108
19000×4000×3800
LSD(Ⅱ)-Ⅲ-4000Z
4000
Frequency conversion adjustable
620
115
20000×4000×3800
LSD(Ⅱ)-Ⅲ-4500Z
4500
Frequency conversion adjustable
690
125
21000×4000×3800
LSD(Ⅱ)-Ⅲ-5000Z
5000
Frequency conversion adjustable
750
133
22000×4000×3800
In green beans:
Feed temperature:+15°C below
Discharge temperature:-18°C below
Freezing time can be adjusted according to different products.
